VaporDryHP™ High Pressure Humidity System

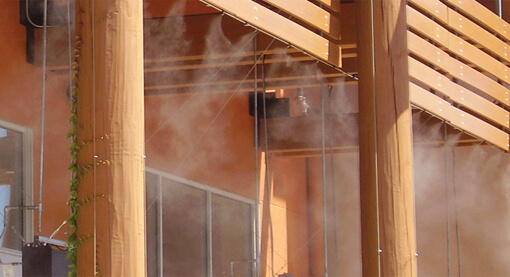

VaporDryHP™ is ideal for warehouses, dust suppression, grow facilities, paper and printing, and any high ceiling applications.

Download VaporDryHP Flyer Download Precise Humidification Solutions Brochure

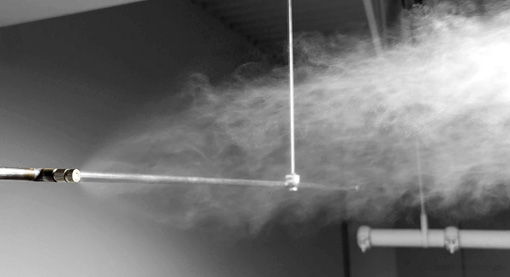

Precise Humidity Control

  • Reliable and accurate humidity control to 100% RH
  • High pressure humidity system
  • Very fine mist
  • No compressor required
  • The cost effective energy saving solution
  • 90% more energy efficient than traditional steam humidifiers

VaporDryHP Applications

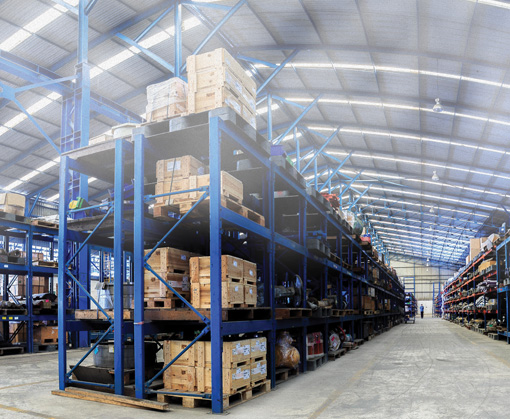

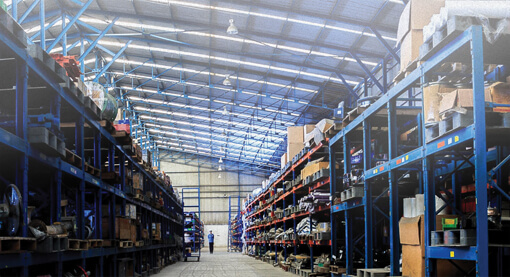

  • Warehouses

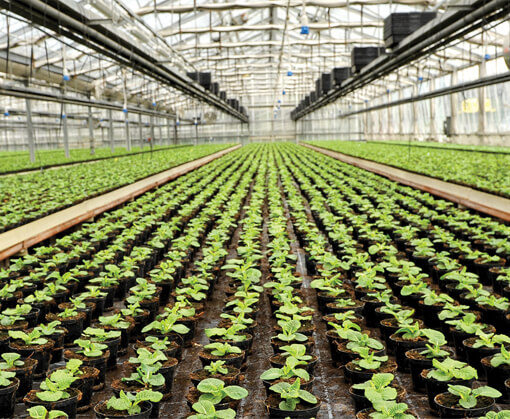

  • Greenhouses
  • Wine and Barrel Storage
  • Paper and Printing
  • Dust Suppression

Water Atomizing Nozzle

Customized nozzle and stainless steel pipe system

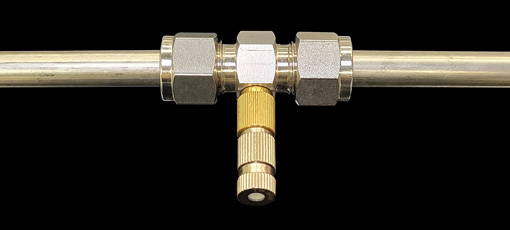

VaporDryHP nozzle

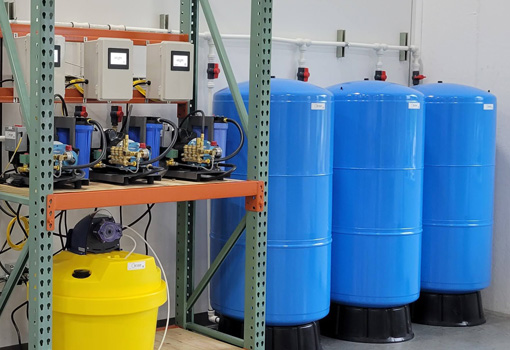

System Components

Control Panel

Control Panel

Controllers come in various configurations and can interface with existing controls. From simple one panel readouts to PLCs with HMI touch screen display and remote monitoring, control panels are specified to meet any application.

Heated Transmitter

Heated Transmitter

± 1.3% accuracy. Heated probe. 0-100% RH. Accurate and long term stable measurement under continuous high humidity and in demanding climate conditions.

Reverse Osmosis System

Reverse Osmosis System

Reverse osmosis water filtration systems have a permeate auto-flush cycle extending the life of the membrane. Systems reject 99% dissolved solids and produce up to 36,000 gallons per day.

VaporDryHP Specifications

System Output

  • 5.84 lbs./hour per nozzle

Water Filtration

  • 0.20 micron sediment filter
  • Reverse Osmosis

Reliable High Pressure Pump

  • Triplex plunger
  • Long life pressure seals
  • Flows from 0.25 gpm to 4.0 gpm

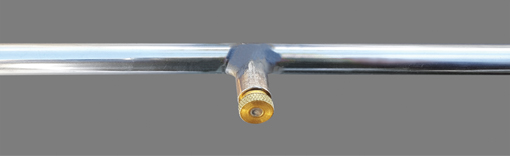

Stainless Steel Mist Bar

  • Low-profile stainless steel design
  • Cost effective for large spaces

Controller Enclosure

  • NEMA rated
  • Multiple module control panels available
  • Specified to meet any application

Humidity and Temperature Transmitter

  • Interface with existing control systems
  • Probe range: 0-100% RH
  • Stable measurements in demanding climate conditions
  • Remote monitoring available
